IP65 Imported High Efficiency 18V 40W All In One Led Integrated Solar Street Lights With Solar Mono Panel

  • >=1 Cartons
    US $270.00
Color:
Lamp Power(W):
40W
Model Number:
T2-J20
Emitting Color:
Cold White
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
Input Voltage(V):
18V
Lamp Luminous Flux(lm):
2000LM
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-25 - 65
Lamp Body Material:
Glass
IP Rating:
IP65
Certification:
CE, RoHS
Warranty(Year):
3
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Tunto Green Power
Product name:
Tunto
Battery:
320WH 12V
Solar panel:
18V40W Imported High Efficiency Monocrystalline Silicon
Warranty:
3 Years
Material:
High Class Aluminum(Anodic oxidation process)
Lumen:
2000LM
Install Pole diameter:
70-75mm
Packaging & Delivery
Packaging Details
710*710*300MM
Port
Guangdong
Lead Time :
Quantity(Cartons) 1 - 1 >1
Est. Time(day) 7 To be negotiated

Integrated Solar Garden Light

















Produact Information:

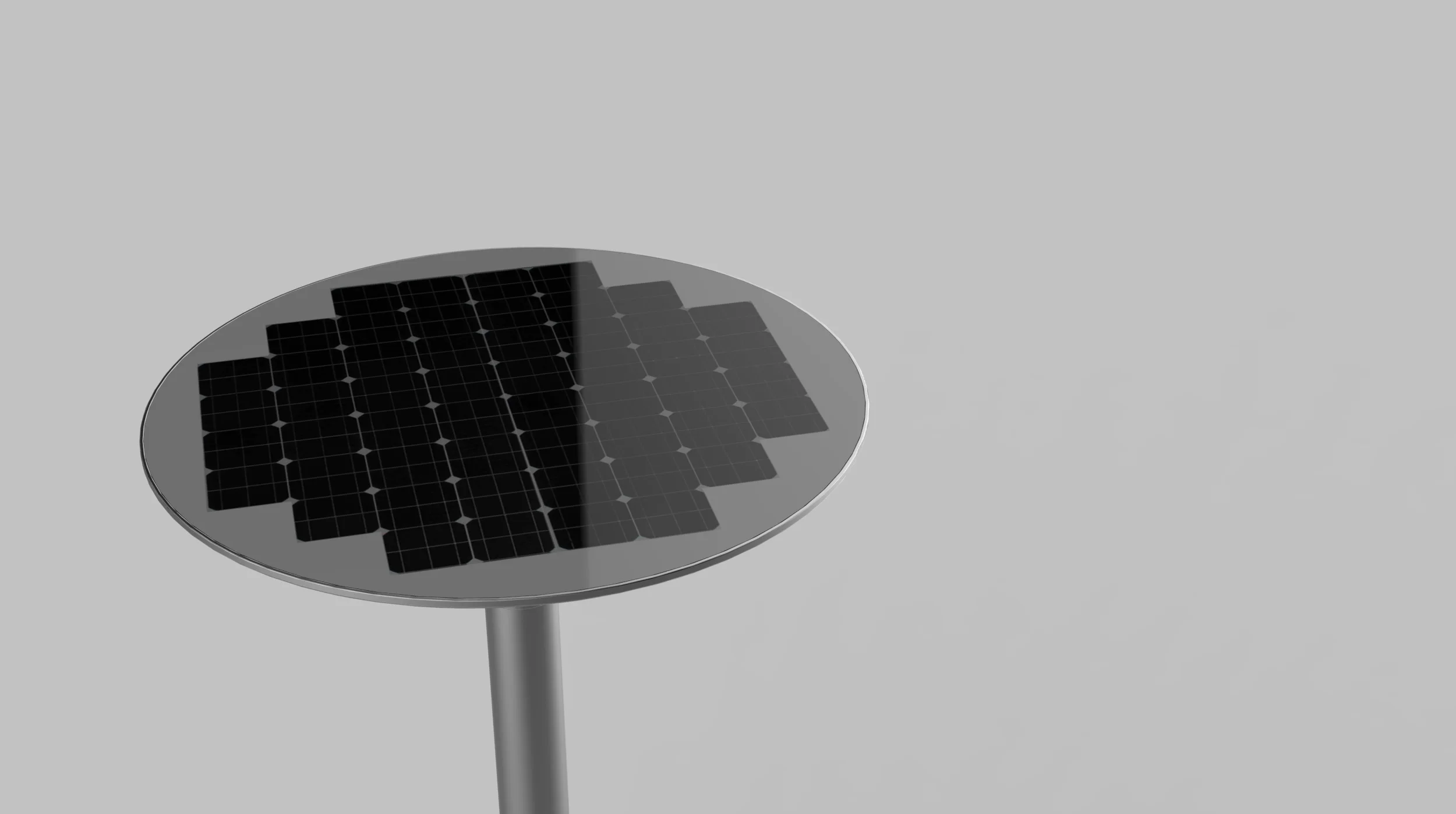

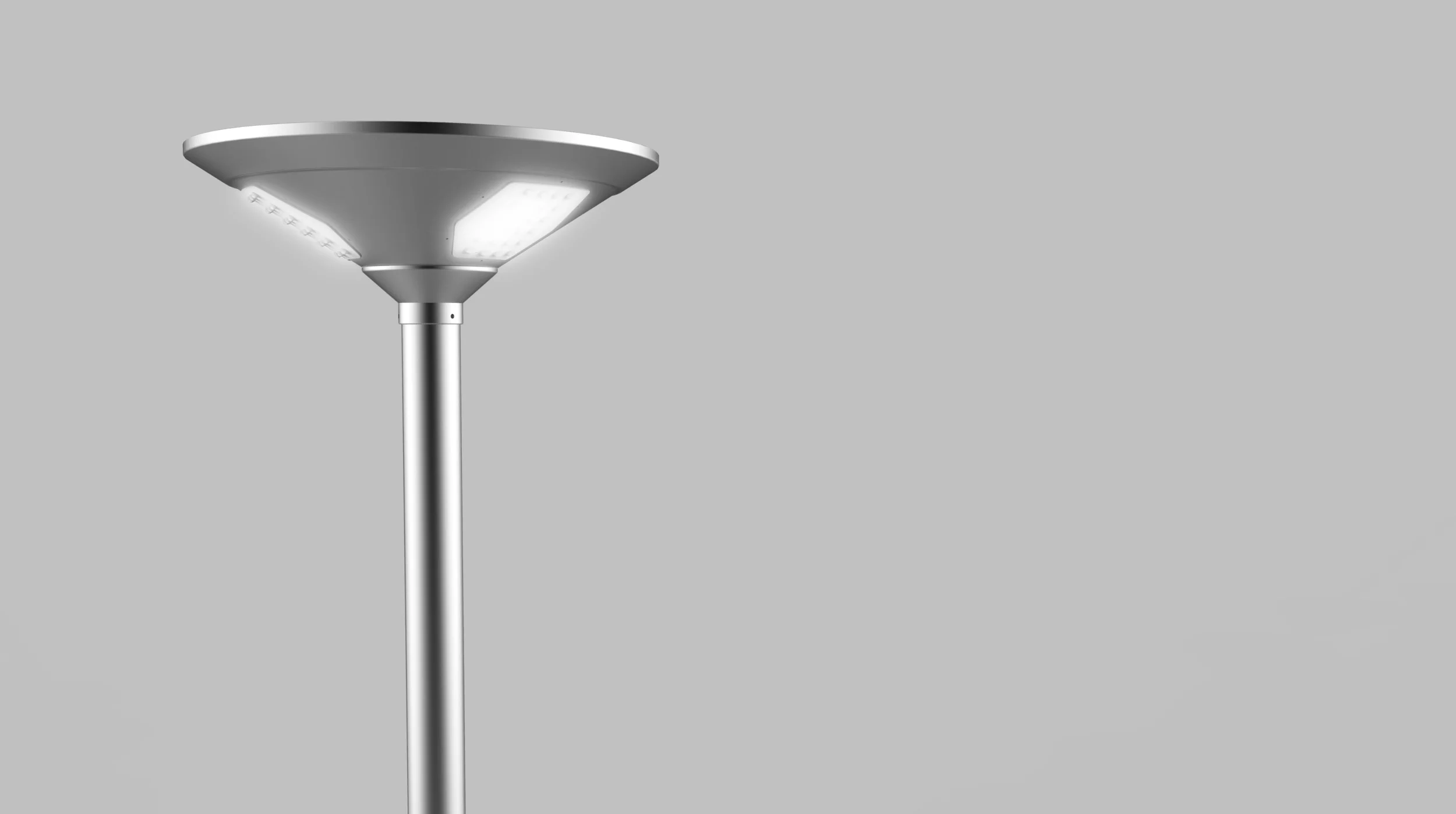

AIO solar street light is an integrated of solar panel,LED light,lithium battery,controller and lighting housing,Daytime solar panel turn sunlight into electricity,with intelligent controlled technology store energy the daylight.During the night when the brightness decrease,solar panel working voltage less than 4V,the sensor will work automatically controller by intelligent induction module.lithium battery turn the electricity to light.Lithium battery discharge to the dawn of illumination increased, the solar panel working voltage is more than 4V, the charge and discharge controller action, lithium battery discharge (off the lights)















Product Feature:

1.High class Integrated Aluminum alloy case .

2.Lighting mode with motion senor

3.360° view angle

4.Over 3 nights lighting after full charge

5.Easy to install,Auto on/off

6.With remote control,UVA technology,bring high corrosion resistance,30m remote control operation,increase/decrease the brightness.

Technology specification:

1. Lumen:1500LM(15WTaiwan Epistar LED Chip)

2. Solar Panel: 30W/18VHigh Efficiency Monocrystalline Silicon

3. Lithium battery:144WH/12V

4. LED Lamp:3PCS LED Lamp/Each 24PCS LED Chips

5. Waterproof:IP65

6. Working tempreture:-25℃~65℃

7. Material:Aluminium alloy

8. Charging time:9-10by bright sunshine

9. Remote control:Yes

10. Install Pole diameter:70-75mm

11.Mounting Height:3-4M(distance10-14M)

12.Warranty:2 years



 Product show








Product  Specification:

Model

Size(mm)

Power(W)

CCT

Lumen(lm/W)

Input Voltage

View Angel

LED Lamp

LED QTY

T2-J15

Φ570*230MM

15

2700K

-

6500K

≥100

12V

 360°

SMD2835

72

T2-J20

Φ660*240MM

20

72

T2-J30

Φ760*250MM

30

120



How to unlock the working system and use remoter?



When the solar panel detect strong enough sunshine, the system would start work automatically with default value.



Remote Control (Remoter) can Turn On/Off the light, Adjust the brightness of the light.



How to install?

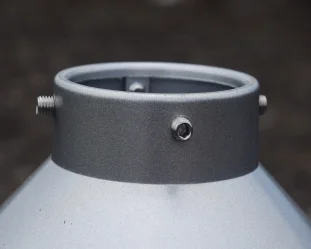

Very easy to install, just screw on the light to the pole by supplied screws



Warning

1.Keep the device away from fire and oil in order to avoid any fire or explosion.

2.Any severe shock to the light is not recommended.

3.No one except professional technicians should attempt to disassemble the light in order to avoid damaging the light.

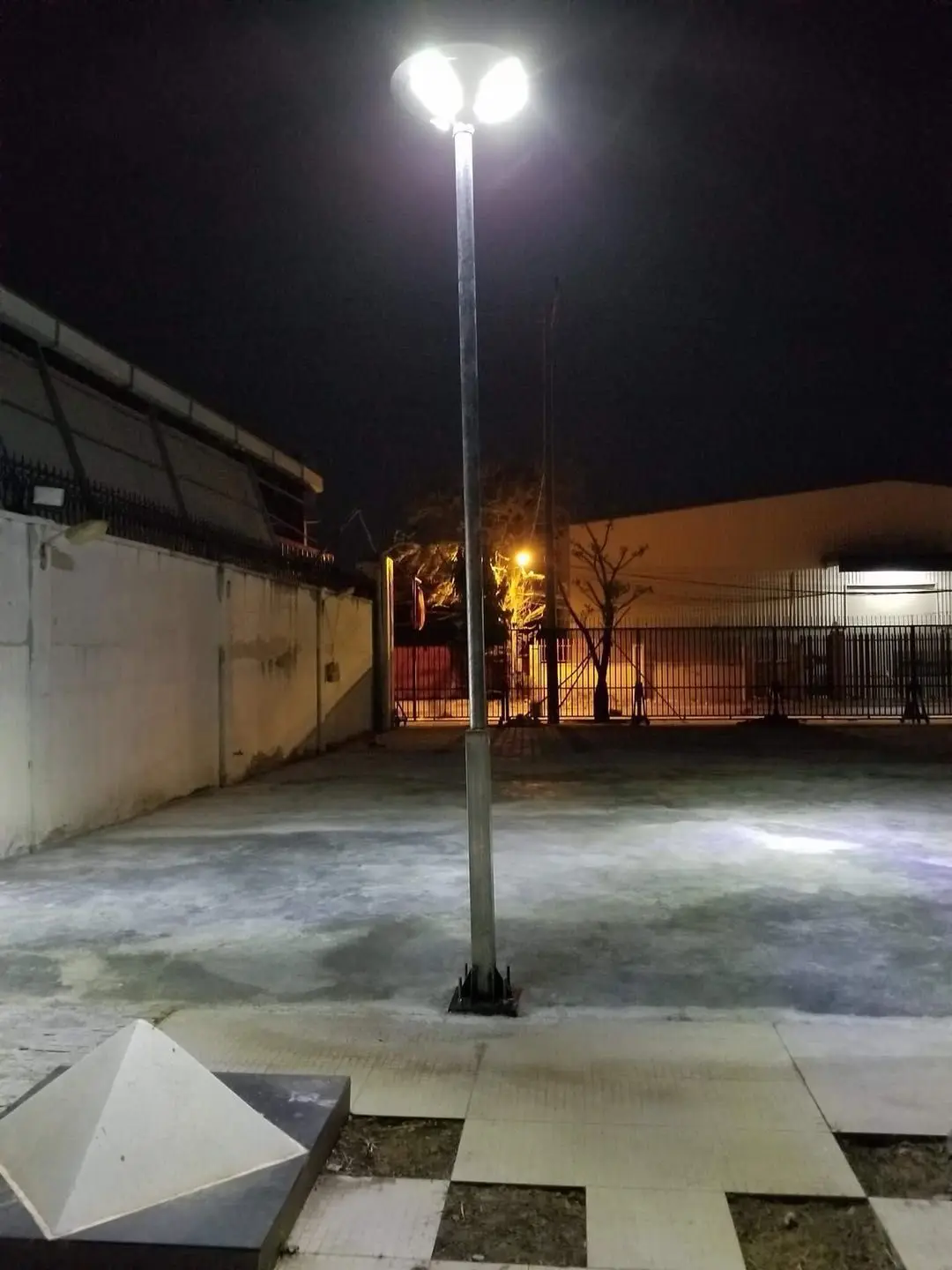

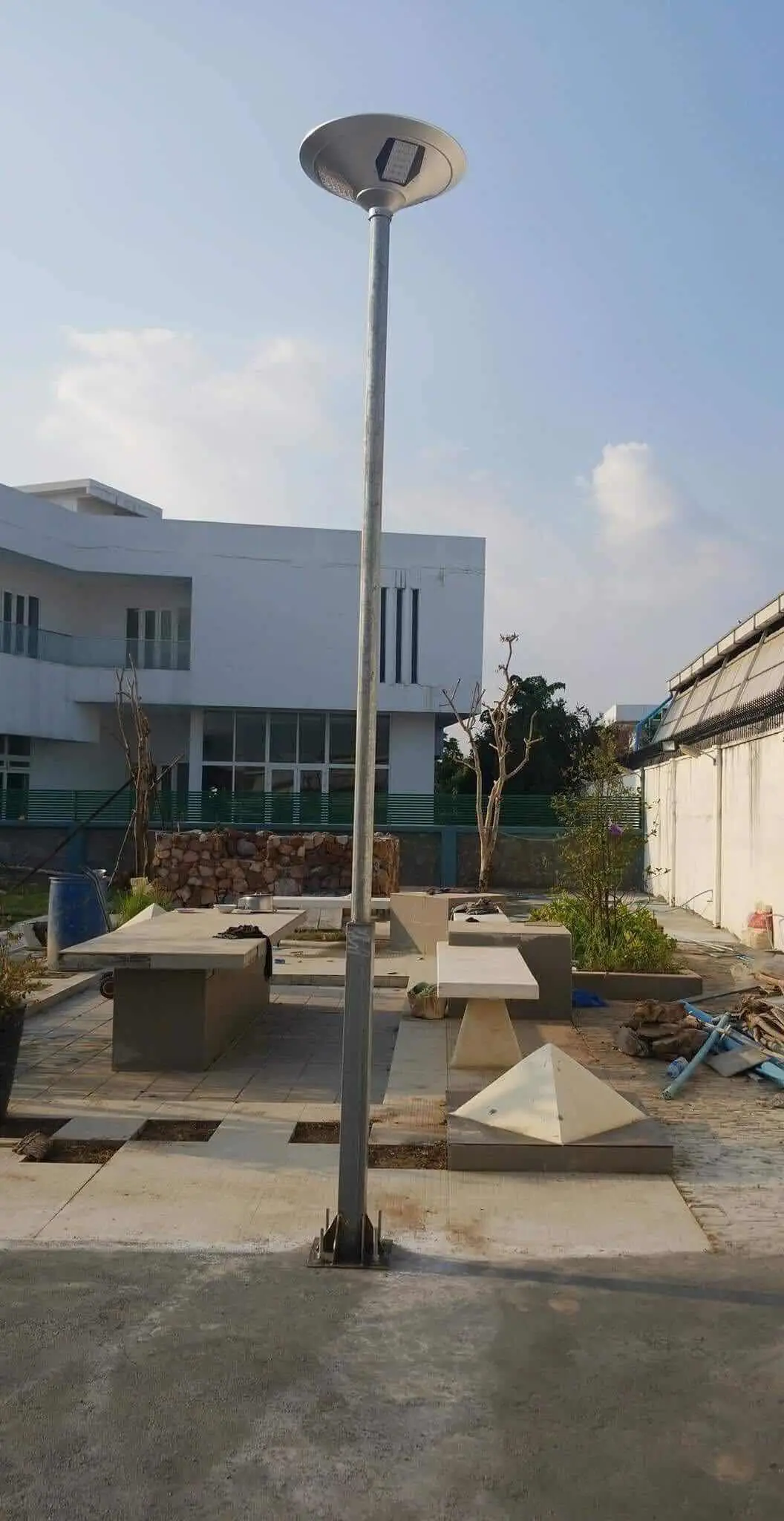

Scene application diagram
