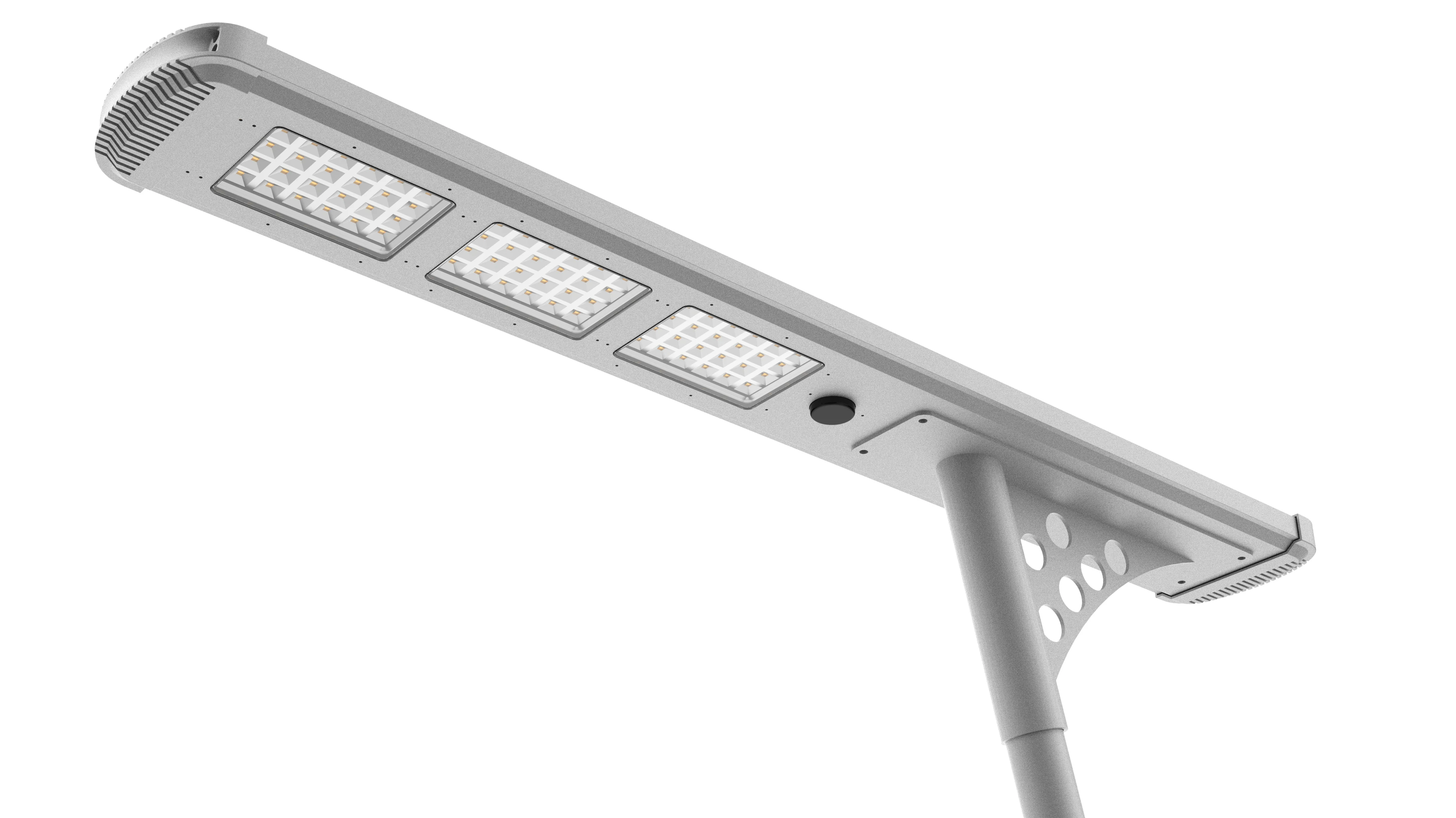

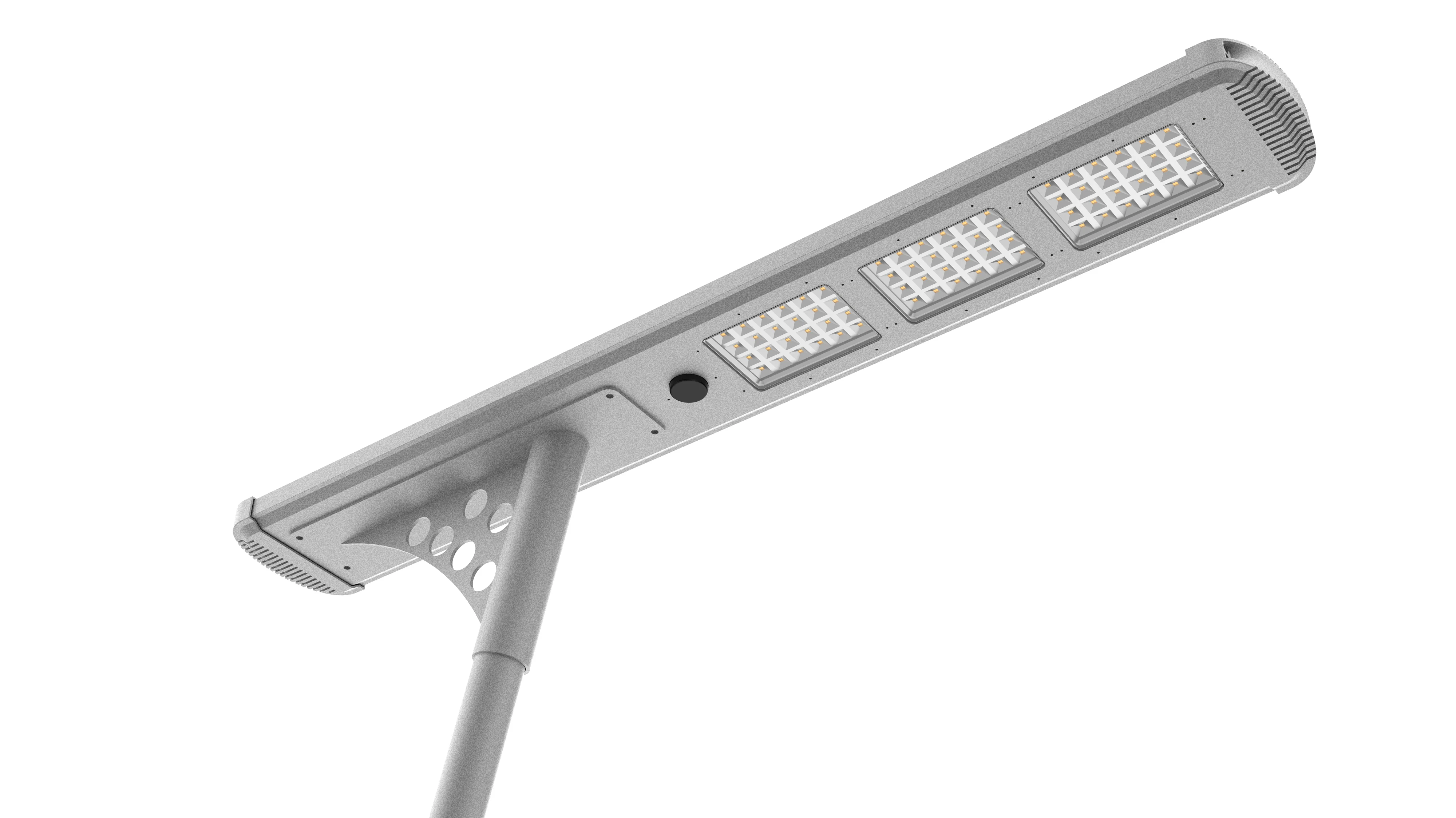

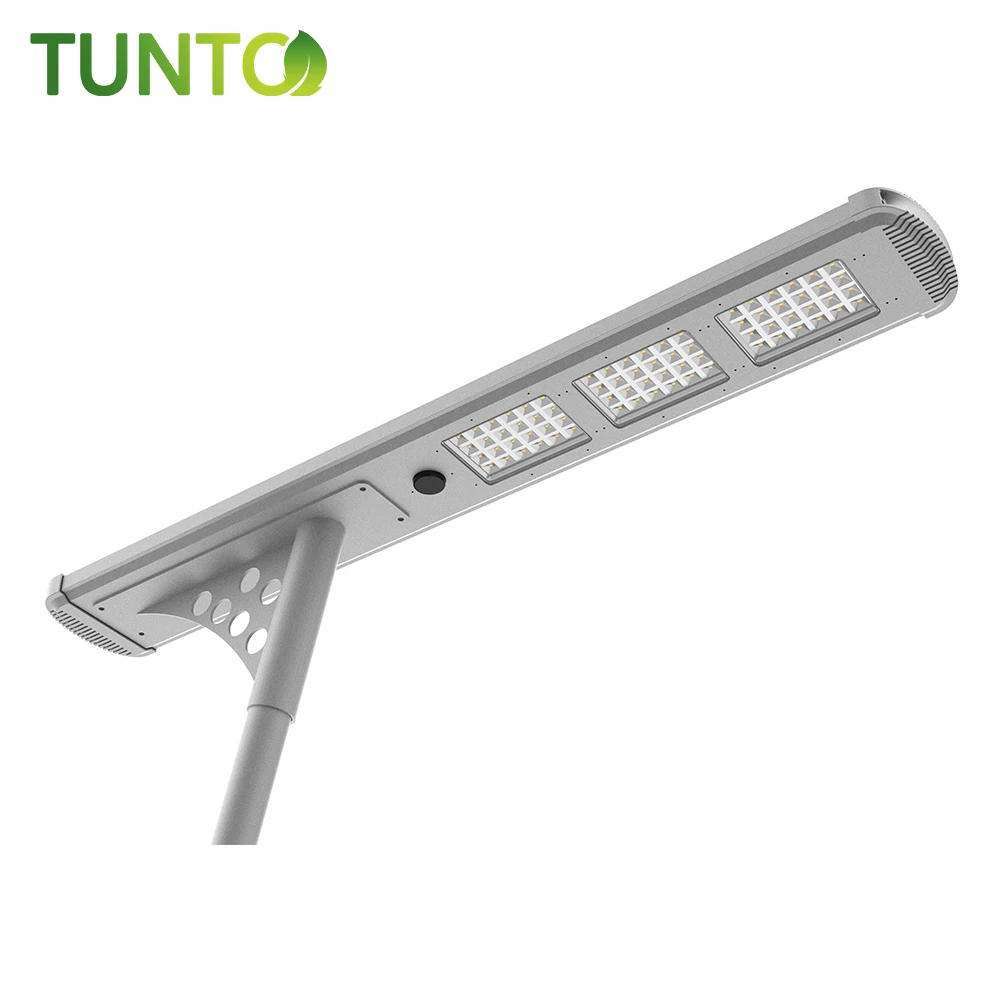

IP65 18V60WImported High Efficiency All In One Led Solar Street Lights With Solar Mono Panel

  • >=1 Cartons
    US $381.49
Color:
White
Lamp Power(W):
60W
Model Number:
T2-GT80
Emitting Color:
Cold White
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
Input Voltage(V):
18
Lamp Luminous Flux(lm):
5000LM
Working Temperature(℃):
-25 - 65
Lamp Body Material:
Glass
IP Rating:
IP65
Certification:
CE, RoHS
Warranty(Year):
3
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Tunto Green Power
Charging time:
6-10 hours by bright sunlight
Battery:
360WH 12V
Warranty:
3years

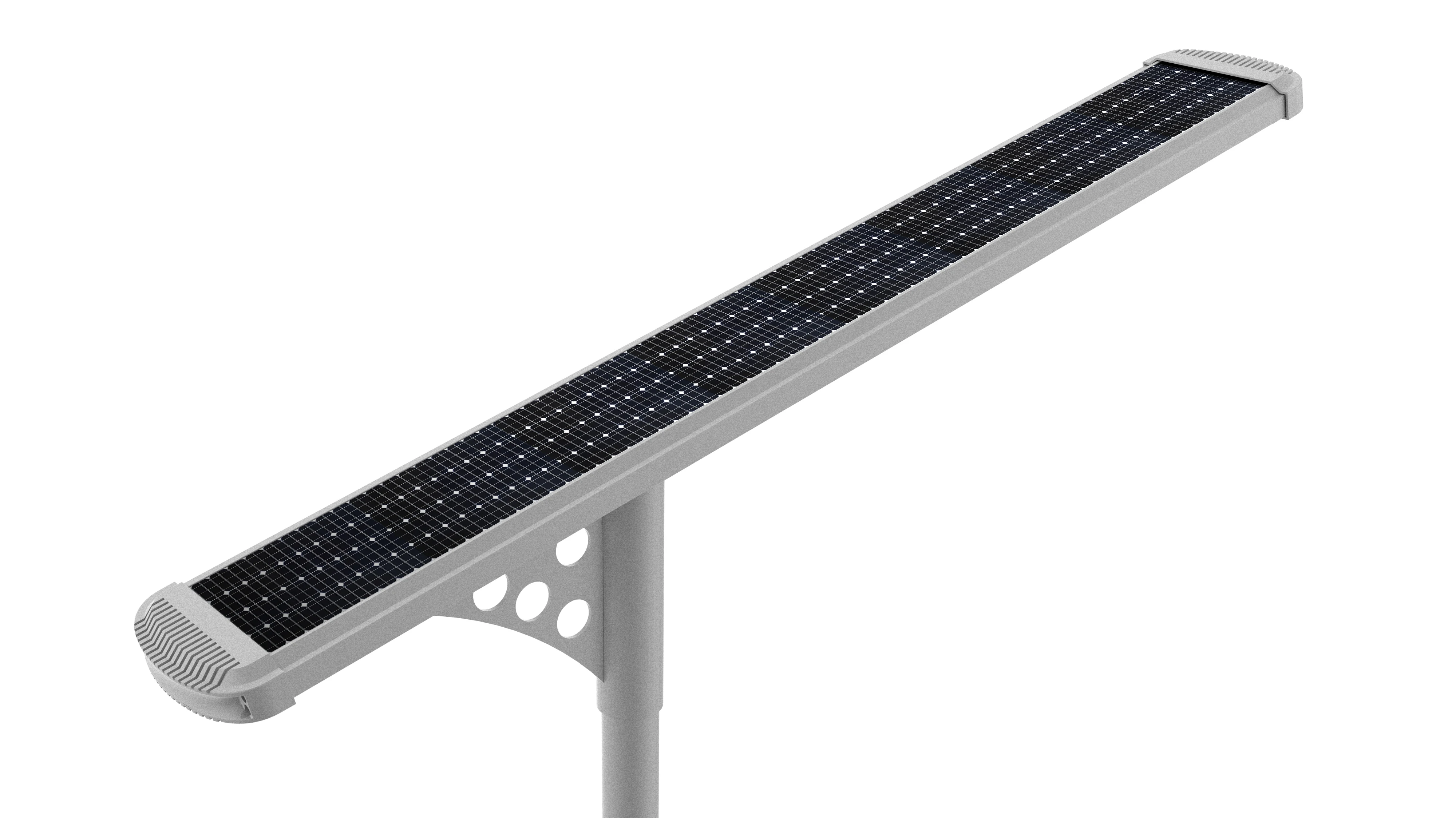

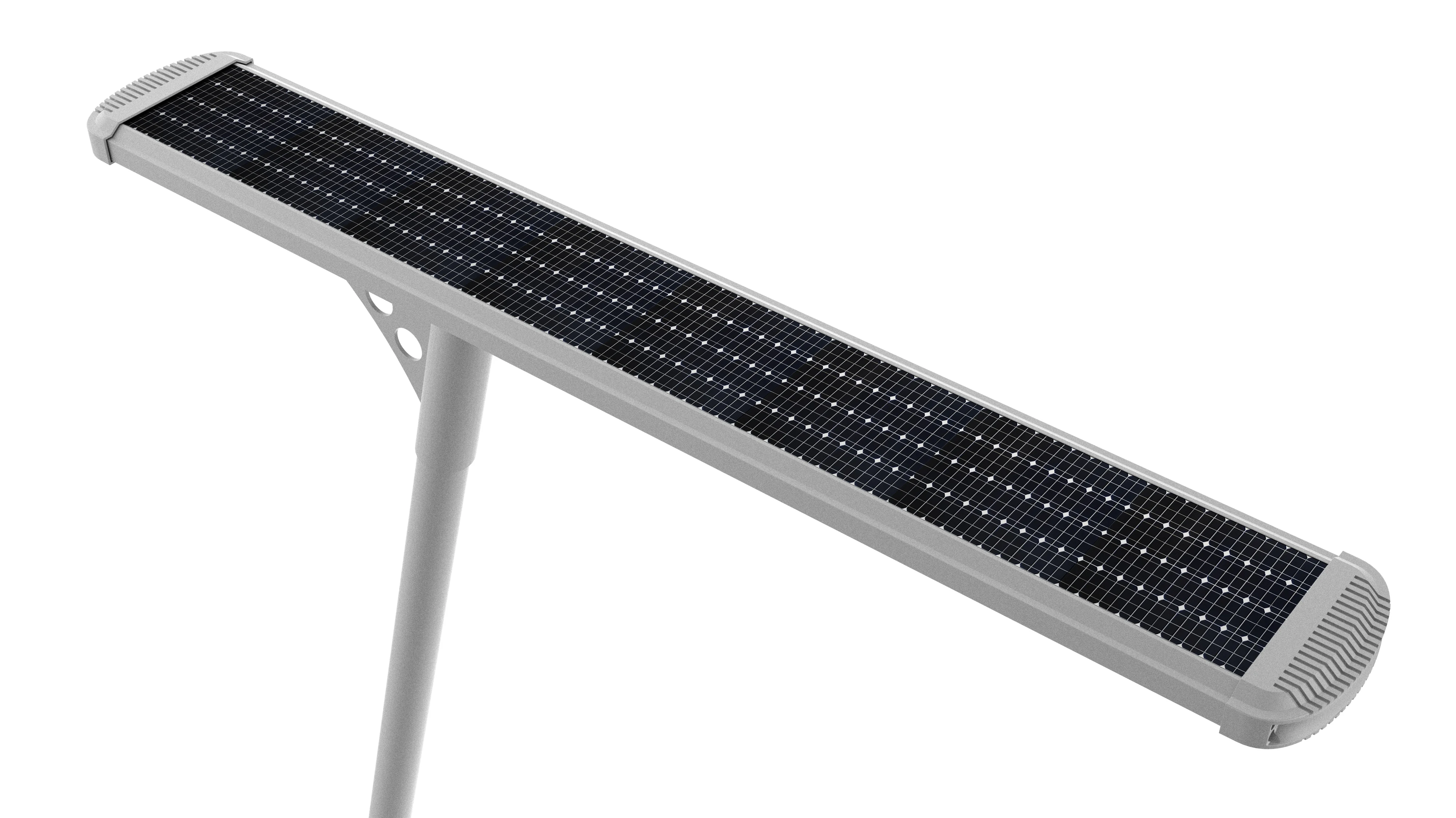

Solar panel:
Mono
Material:
High Class Aluminum(Anodic oxidation process)
Certificates:
CE,ROHS,IP65
Mounting Height:
4~6m (Suggest install between space14-21m)
Packaging & Delivery
Packaging Details
Packing:
LED Light Carton Size1680*140*300MM
Q'ty/ctn:1Set
G.W:12.2KG
Accessories Carton Size :600*150*340MM
Q'ty/ctn:1Set
G.W:2.9KG
LED Light and Brackets separate packing
Port
Guangdong
Lead Time :
Quantity(Cartons) 1 - 1 >1
Est. Time(day) 7 To be negotiated

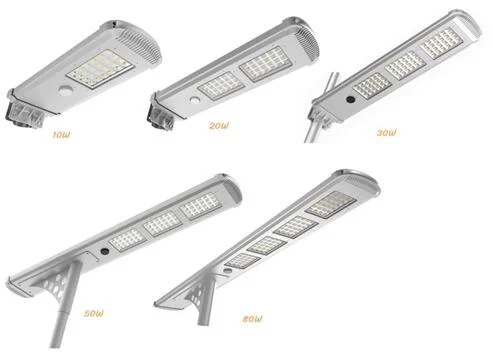

All In One (AIO) Solar Street Light



10W    15W   20W

30W    50W   80W




Product Informantion:



solar panel turn sunlight into electricity,with intelligent controlled technology store energy the daylight.During the night when the brightness decrease,solar panel working voltage less than 4V,the sensor will work automatically controller by intelligent induction module.lithium battery turn the electricity to light.Lithium battery discharge to the dawn of illumination increased, the solar panel working voltage is more than 4V, the charge and discharge controller action, lithium battery discharge (off the lights).








Feature:


1.High class Integrated die-casting Aluminum alloy case .
2.Lighting mode with motion senor
3.120° view angle
4.Over 3 nights lighting after full charge
5.Easy to install,Auto on/off









Brief:



Our integrated solar street light which integrates the green-energy parts solar panel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it’s convenient in the shipment and installation.



Purpose:

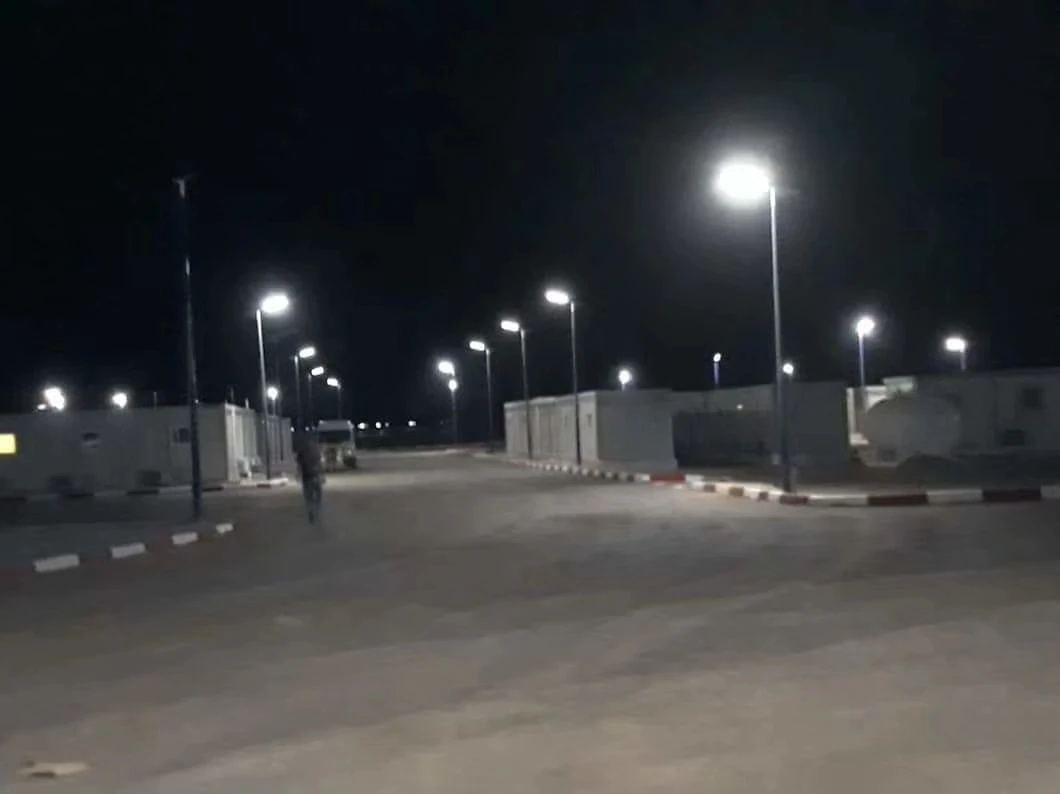

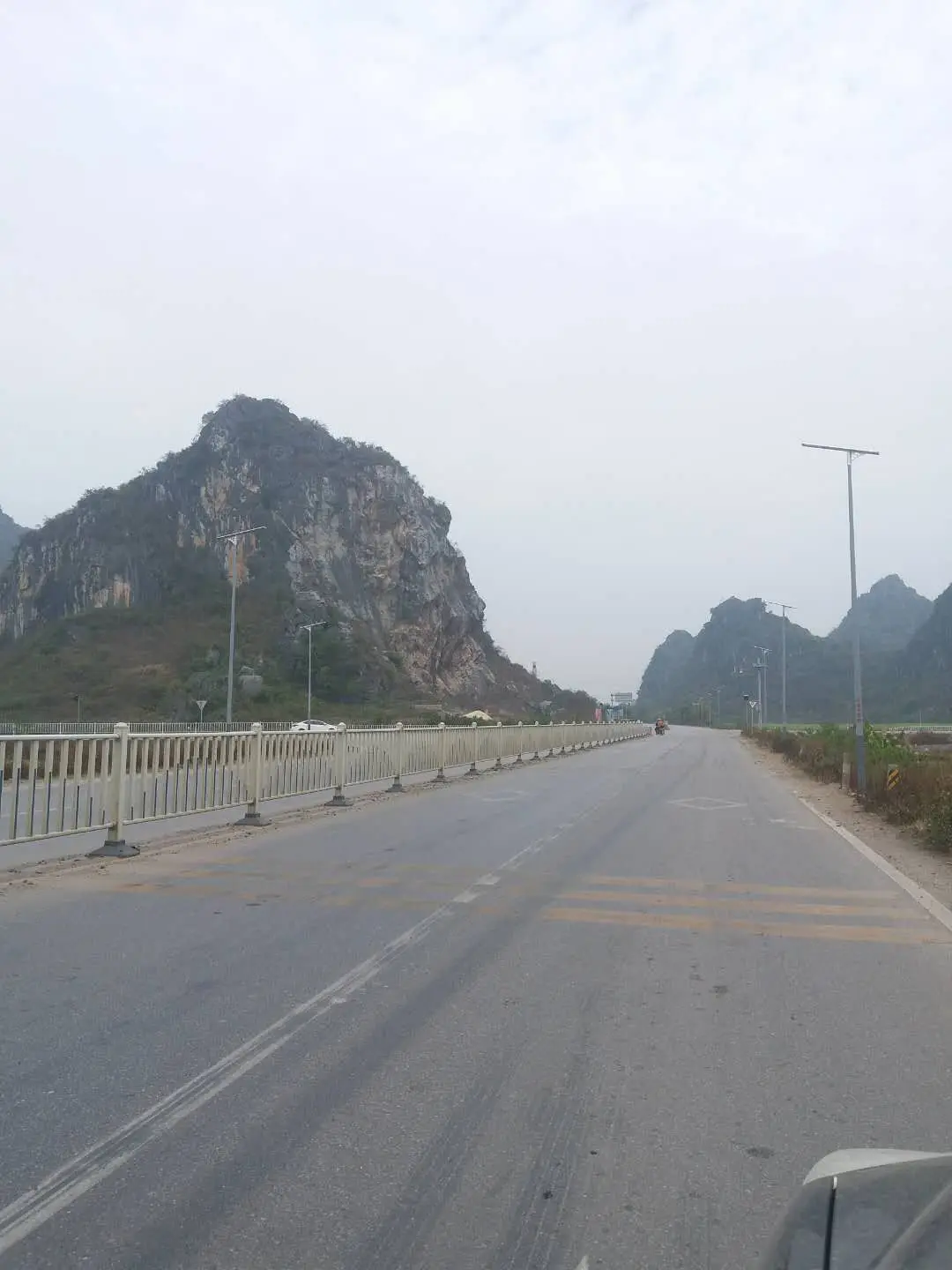

To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it’s necessary, the battery provide the energy for lighting, and the solar panel charge for the battery

.T2-GT50(5) (2).jpgT2-GT50(3) (1).jpgT2-GT50(5) (4).jpg

Product parts:

The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system), which can be installed on the pole or wall directly.



Working characters:



The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.



Manual:



(1).“All in One solar street light”can not work without sunshine charging, please select the suitable product model according to the local sunshine radiation and the annual total radiation.



(2)“All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0°C~+60°Cwhen temperature goes lower than 0°Cthe control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0°C. Discharging temperature at night is between: -30°C~+70°Cany ambient beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for above while selecting the street light.



(3)Battery of the “All in One solar street light” can be stored for 6 months long after full charged, and please examine, charge it periodically after long time transportation to prevent damage.



(4)While installed in Northern Hemisphere, please make sure the surface of the solar panel to be facing the South to collect maximum sunshine radiation, While installed in Southern Hemisphere, please make sure the surface of the solar panel to be facing the North to collect maximum sunshine radiation. At the same time please keep it away from any shadow of house, trees etc.



(5)Keep clearing the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
