Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Tunto
  • Model Number: T2-081B/I, T2-081B/I
  • Specification: Mini, Normal
  • Application: Home
  • Output Voltage (V): 24V, 24V
  • Load Power (W): 1000W, 1000W
  • Solar Power (W): 1000W, 150W*2pcs
  • Work Time (h): 7-8h, 7-8hours
  • Certificate: CE RoHS
  • Battery: 12V 100AH*2pcs
  • Inverter: Pure Sine Wave Inverter
  • PV cable: 4M3 * 30M

Packaging & Delivery

Packaging Details Netural Packaging
Delivery Time 15-30days after receivd your payment

                                                     Complete off grid 1KW home solar system with solar battery backup

                               1kw solar system for home     complete home solar power system    off grid solar power system

Product description:

Product description:

Name of PartSpecification
Solar panel Model No. T2-M150W
 Rated Maximum Power  150
 Maximum Power Voltage:36 Vmp - Current: 5.56Imp
 Open Circuit Voltage(Voc) 21.24
 Short Circuit Current(Isc) 6.11
 Maximum System Voltage 1000
Operating Temperature  -40℃~+85℃
Standard Test Conditions 1000W/m2, AM1.5, 25℃
  Lead-acid battery Nominal Capacity 12V100AH*2
     Solar Controller Rated Voltage(V) 24
 Maximum charging current(A) 20
 ChargeVoltage(V) Floating: 28.8V - Balance:27.6
 Voltage range (V) 21.6-33
 Operating temp. -40℃~+60℃
      Pure Sine Wave Inverter             Rated power(W): 1000  DC input voltage range (V): 21-30
 AC input Voltage(V) and Frequency  (V) 110/220/240±25% - (Hz) 50/60±5%
 AC output Voltage(V)and Frequency  (V) 110/220/240±25% - (Hz) 50/60±5%
Wave form: Pure sine wave  THDI: <5% (linear load)
Power factor: 0.9  Effeciancy: >85%
 AC charging current (A)  Rated: 10, Max.: 15
 Max. operating altitude  3000 (>3000m derating)
 Storage temperature range  -25℃~+70℃
 Cooling method  Air cooling
 Operating temperature range (°C)  –20~+50 (>50°C derating)
 Relative humidity in operation  0~95% (non-condensing)
 Noise emission [dB (A)]  <55 (at 1 meter)
 Communication interface  RS232 (optional)
 Over load capacity  100~125% 10min; 125~150% 1min; 150~200% 5s
 Complete protections  DC & AC overload, under-voltage, SPD, short-circuit, overcharge, overdischarge, over-temperature

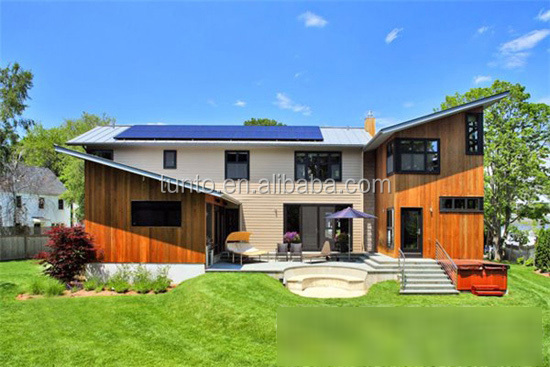

Product show:



About us:






1.    Are you factory?

       Yes,Welcome to visit our factory.

 2.   All products have a warranty?

        Yes,All kinds of products at least 1 year warranty.

 3.   What is the shipping ?
