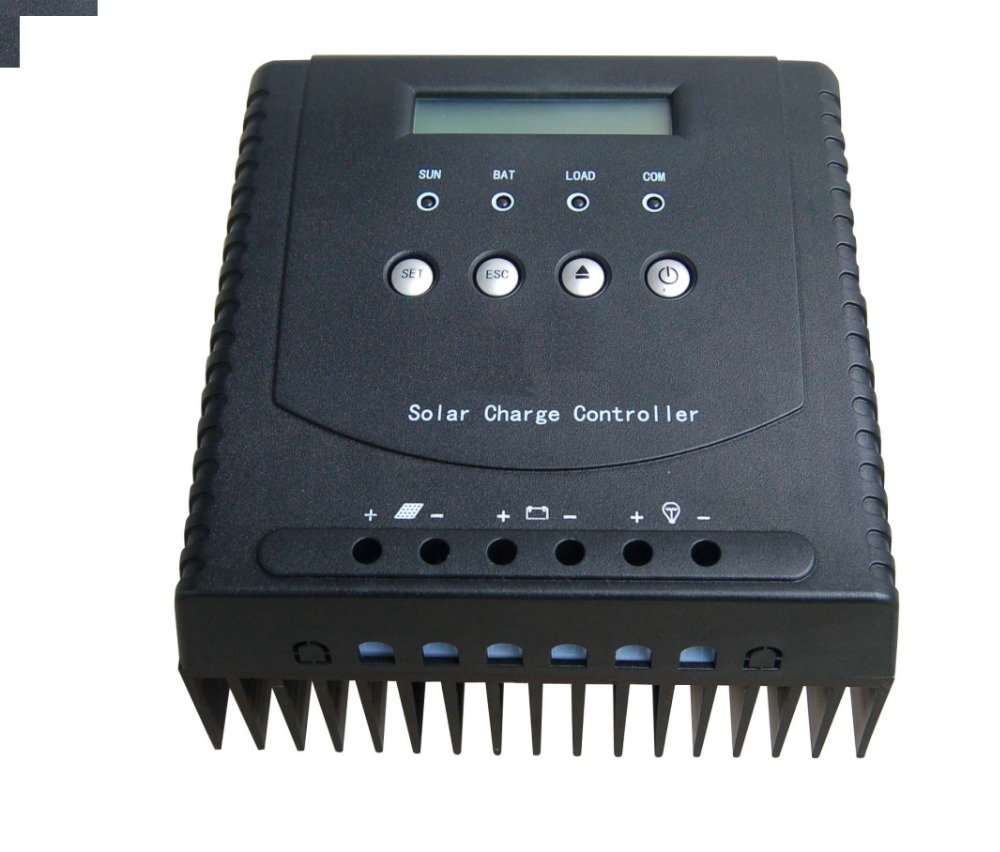

12V24V/48V 10A/20A/30A/40A/50A/60A MPPT Solar Charge Controller

FOB Reference Price:Get Latest Price
US $42-108 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Tunto
Model Number:
T2-F1224/T2-F2448
Application:
Solar System Controller
Rated Voltage:
12V/24V,24V/48V
Maximum Current:
10A 20A 30A 50A 60A
Certification:
RoHS,CE,SONCAP
Battery:
Lead Acid
System voltage:
12V/24V,24V/48V Auto
Control Mode:
Switch control/PWM
Warranty:
1 Year
Display:
LCD Display
Rated Current:
10A/20A/30A/40A/50A/60A
Working temperature:
-20℃-45℃
Alarm mode:
Sound(optional)/light alarm
Max. efficiency:
>98%
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard package
Port
Guangzhou
Lead Time :
3-25days depends on quantity





Product Description

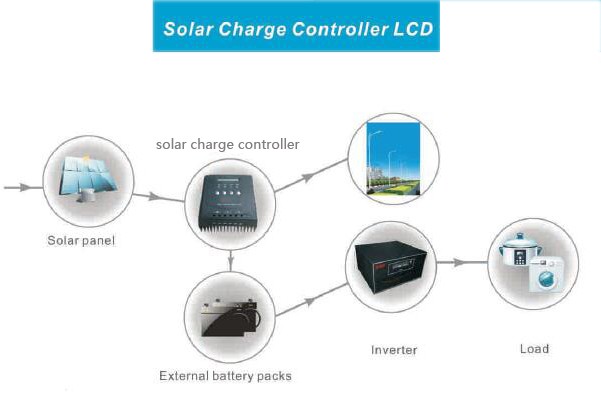

Application area

1.       solar home system

2.       public security monitory system

3.       solar street lamp system

4.       DC signal light power supply system

5.       Small and medium size telecommunication station power supply system

6.       Small size solar power station system and solar DC power supply system

Technology Paraments



Model

T2-F1224/ T2-F2448

System voltage

12V/24V,24V/48V

Rated charging current

10A/20A/30A/40A/50A/60A

Rated load current

10A/20A/30A/40A/50A/60A

PV panels configuration(suggestion)(Img≤Rated current)

≤60A

Battery capacity

38-800AH

Max. efficiency

>98%

Static dissipative

<0.5%(system rated current)

Solar battery port input voltage range

12v,0-24v,24V,0-48V,48V,0-95V

Rated battery voltage

12v/24v,24V/48V

Buck charge voltae

14.6v/29.2v±1%,29.2V/58.4V±1%

Float charge voltage

14.4v/28.8v±1%,28.8V/57.6V±1%

Over charge protection

14.7v/29.4v±1%,29.4V/59.8V±1%

Charging resume voltage

13.2v/26.4v±1%,26.4V/52.8V±1%

Under voltage alarm

11.2v/22.4v±1%,22.4V/44.8V±1%

Under discharge protection

10.8v/21.6v±0.3v,21.6V/43.2V±1%

Under discharge resume start voltage

13.2v/26.4v±0.3v,26.4V/56.8V±1%

Discharge circuit voltage drop

<5%(system rated voltage)

Overload,short circuit protection

125%(60S)/150(10s)/short circuit auto short down

PV reverse polarity connection protection

Yes

Display

LCD

Alarm mode

Sound(optional)/light alarm

Control mode

Switch control/PWM

Working temperature

-20℃-45℃

Relative humidity

0-95%(noncondensing)

Storage temperature

-25℃-85℃

Altitude

1000m with rated power(increase 100m,reduce power1%)Max.4000m

Storage humidity

≤85%

Installation method

Hanging vertical installation

Packing dimension(W*D*H)

164*168*55,164*168*100

Weight(KGS)

0.85,2.05

Packing weight(KGS)

1.05,2.25

Package

8pcs/ctn

‘M’meanswith mppt function









 Feature

1.       Intelligent operation:the system will automatically start PVcharging function without the manual operation.

2.       High efficiency MPPT function(optional),the system adopt maximum power point tracking technology, even if the battery using in the different condition,this MPPT controller could

          ensure max.output power from the PV panels,and increase 20-30% electrical power using efficiency from solar panel.

3.       Reliability:adopt the hybrid controller to realized’MPPT+SOC’double intelligent charge control,ensure the product stability and reliability.

4.       Intelligent charge control:with automatic battery temperature compensation,constant current and constant voltage integrated charge mode,improve the battery’s charging efficiency and working life.

5.       Circuit protection/Reserve polarity connection protection/TVS lightning protection.etc.

6.       LCD display:to show the working mode of solar battery,seal-lead acid battery and load.





Payment and Shipment



Our Services

1. Samples

Samples are Available for Testing and Market Test.



2. Warranty of Tunto Products

Tuntoprovides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers,Solar system,Solar street light,Solar mini system (“Product”).



3. Guides and After-service Consultancy

Tunto Power Team will offer these guides below.

  A. Need an Accessory?

  B. Products Repair?

  C. Power Problems to Solve?

  D. Power Protection Solutions, etc.?



24 Hours After-service consultancy just for you and to make your problems to solve easily.



4. OEM Service

OEM service of Tunto is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 3 years.
