10W/7Ah Multi Color Dc Solar Kit With Mp3 Player&Radio And 3 In 1 Mobile Charger

FOB Reference Price:Get Latest Price
US $30-35 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Tunto
Model Number:
T2-SG1210W
Battery:
12V-7Ah Lead Acid Battery
Max working time:
>10h
Load power:
10W
Function:
radio,MP3player
Charging mode:
solar panel
USB:
3 in 1 mobile Charger
Color:
white,grey,blue
Certification:
CE, RoHS
Connection Type:
Other
Heating System:
Other
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
color gift box,overseas carton,neutral packing,design in customied
5pcs/ctn,2196pc/20FCL,5330pcs/40HQ
Port
Guangzhou,Shenzhen
Lead Time :
Shipped in 20 days after payment

FM Radio Function Solar Energy Kit With Phone Charging



Product Description

 Technical data



Model

SG1210W





Input charging voltage

Voltage of solar panel 25V / AC charger 15-16V



Max. charging current

2A



Rated output voltage

3A



Current value for overload protection

4A



Current value for short circuit protection

2.2 times of rated current



Time for restart

Automatic release after 30S or turn off the power switch directly



Output current for USB

1A



Voltage point for over-discharge protection

11.0V



Voltage point for over voltage recovery

12.6V



Voltage for float charge

13.8V



Over voltage value for protection

15.5V



Charging mode

PWM available



Audio format  avaiable

MP3




Frequency range of the radio

FM 88—108MHZ



Power of loud speaker

4Ω--3W



Input port

SD card, USB



Working temperature

-25----+60



Dimension

180*81*209(mm)



Net weight

2.55Kg








l
MCU control (Micro Control Unit), PWM type charging work in with advanced charging and discharging control algorithm, it can effectively prolong the service life of battery.

l  Offer DC 12V output interface and 5V USB output interface.

l  5 grade Indicator for Capacity of battery, Indicators for LVD, Charging, Float charging, and Overloading.

l  All round Reverse Connected Protection, Reverse Charging Protection, Overcharging Protection, Overload Protection

l  It can direct start charging function without turn on the production, so the self-consumption will be low.

l  Battery Low final protection, no need to worry about destroyed battery because long time forgetting to close the system.

l  Optional MP3 Decoding and Radio.

Details Image





Features

*Green power system,powered by Solar energy
*Portable fashion, plug and play design ,very easy for using
*Lighting and Mobile phone charging function
*2pcs Super bright LED Lamp , with more than 10 years self life
*With switch on each lamp , and turn on and off easily for energy saving
*Perfect for remote area ,island area where short of electricity ,used as lighting ,mobile charging,                                                                             radio and MP3 player(can use memory card to play)
*Perfect for using as a Emergency Lighting power sourcing , any place can work just with sunlight
*Perfect for camping with the portable design.

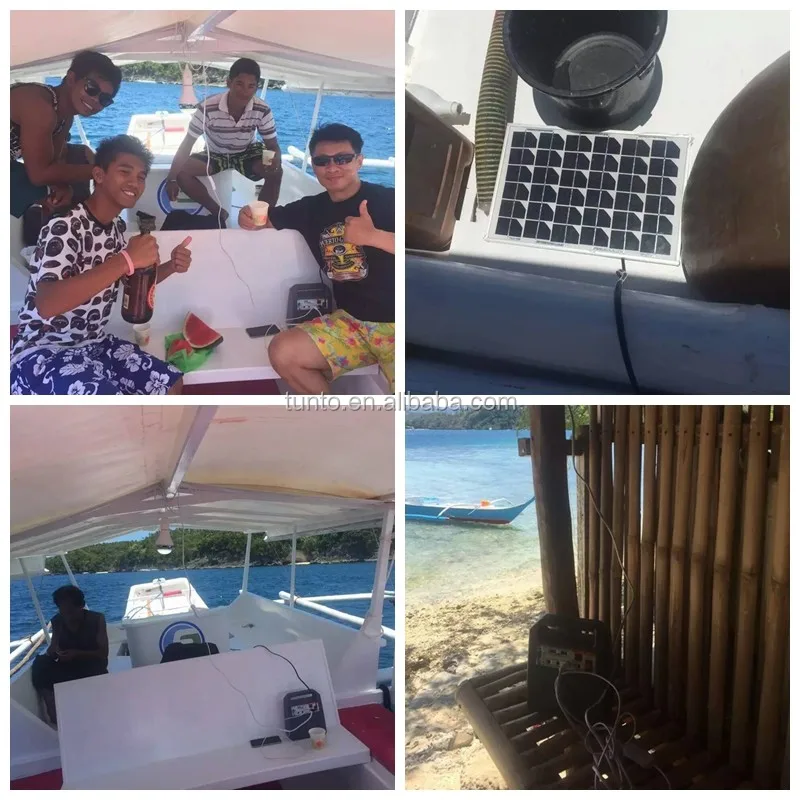

Application Place
