3000W dc ac inverter AC solar inverter with built-in charge controller S614

FOB Reference Price:Get Latest Price
US $1,150-1,180 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Tunto
Model Number:
S614
Specification:
Normal
Application:
Home, Air conditioner,Fridge,Washroom,etc
Output Voltage (V):
110V/120V/220V/240V
Load Power (W):
3000W, 3KW
Solar Power (W):
7200W
Work Time (h):
It depends on the used appliance
Certificate:
IEC,CE,ROHS,ISO9001
Controller:
48V100A MPPT Solar Controller
Max Battery Capacity:
12V 3000AH
product material:
Iron with coating
System Type:
mobile solar power generators
Inverter:
110V/220V Pure sine wave
Product color:
Green/black or other
Design Concept:
Concise style and Cost saving
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
System box: 520*550*165MM;
Solar Generator 220V box: 14.48KG;
Neutral packing or as your requested
Port
Guangzhou
Lead Time :
Usually is 15-20days,also depend on the customer's quantity.

Specifications

solar inverter with mppt charge controller
Trademark: Tunto
Packing: Carton Box
Standard: CE; RoHS; FCC
Origin: China







Product Description

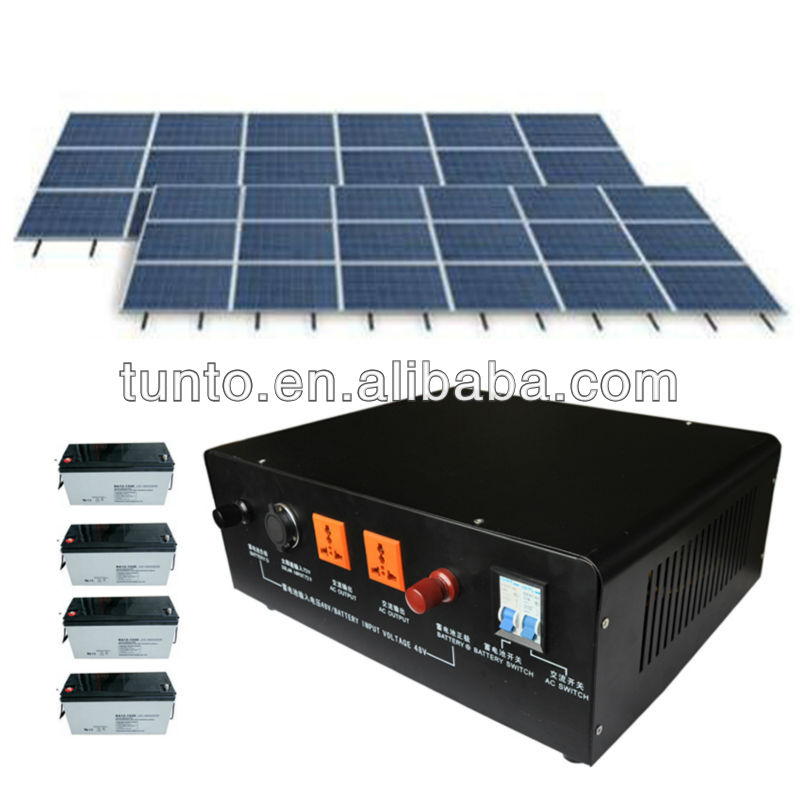

3000W  AC Mobile Solar Power Generators with MPPT Controller


1. Application

This MPPT Mobile solar power generators for home use 3KW provide power for household appliances, such as computer,TV,fans, freezer,air conditioner,washer,induction cooker etc.


2.Product Parameters:

1. Inverter;3KW,pure sine wave inverter(output power 3000W)
2. Controller: 48V100A,charging way:MPPT
3. Battery input:48V
4. Solar power input;72V(effective DC charging voltage for 60-90V)
5. Connecting max.power of solar panel:18V3600W
6. Connecting max.battery capacity:12V750AH
7. Solar panel voltage:72V
8. Output voltage:110V/120V/220V/240V(choose one output voltage), output frequency:50/60Hz
9. Connector:battery positive and negative input*solar power input*AC output
10. Cooling fan: temperature-feeling cooling fan,starting temperature for 45°C
11. Liquid crystal display frequency:: according to the output state of AC voltage, separately show: output voltage,output current,output power,accumulative total power consumption,take turn to switch
12. LED indicator;
Green indicator is for charging
Red indicator :slide the battery switch up, red indicator flash for 2 time, approximate 3 seconds later, the indicator lights, power source outputs.. Under voltage or super voltage,the indicator don’t light. The system can’t start. In the output process, if the voltage is below 43V, the output stops, red indicator flashes ceaselessly, when battery voltage rises up 48V, stop flashing, output recovers., When entering into heat-protection state, indicator happens one time instantaneous flash per second, the output stops, when temperature recovers to 65 degree, stop instantaneous flash and start electricity supply.
Yellow indicator is for AC output state, when AC short circuit , yellow indicator go out; when over-temperature, yellow indicator lights, red light flashes.
13. Switch:power source output switch * battery switch
14. Temperature protection: 85 degree(power off)
15. Way to avoid thunder:solar input connector 180V surge discharge tube


3.Product Diagram

1)  Power source output switch
2)  Battery switch
3)  Battery input +
4) Power source output socket
5) Solar input connector
6)  Battery input –
7) Power source output indicator
8)  Battery working indicator
9)  Solar power input  indicator

4.PRODUCT MATCHED PARAMETER ACCORDING TO MAX CONNECTABLE SOLAR PANEL AND BATTERY
1) The solar panel generating electric quantity one day : 16.6KWH( according to 6 hours  standard sunlight per day
2) Battery charging time:9-10 hours
3)Max supporting appliance power:3000W
4)Battery backup:9-10 hours (with full load)

5.Size and weight
Mobile solar power generator system case: 520*550*165MM

Mobile solar power generator system case: 14.48KG

6.Assembly

Before installation, must slide the switch of battery and close AC output switch.
First, according to the sign of the connecting terminals' positive and negative pole on the system box back, install the battery. Due to the reverse connect protection device in the system, so the wrong connection will cause the system not to be started.The solar panel connects with double head wiring, red wiring is positive, blue wiring is negative. After the confirmation of the correct installation of battery, turn on the battery switch up,the home use  solar power generator powers on, the red indicator on the front side of system flashes for 2 times, 3 seconds later, the liquid crystal display start, and the portable solar generator starts, slide the AC switch up. Connect the equipment below 3000W to the output 220V socket, electricity supply starts.



7.The Load Powered by S6 series





Model

Light

Fan

Computer

TV

Fridge

Air Conditioner

S601

Y

Y

N

N

N

N

S602

Y

Y

N

N

N

N

S603

Y

Y

Y

Y

N

N

S604

Y

Y

Y

Y

N

N

S605

Y

Y

Y

Y

Y

N

S606

Y

Y

Y

Y

Y

N

S607

Y

Y

Y

Y

Y

N

S608

Y

Y

Y

Y

Y

N

S609

Y

Y

Y

Y

Y

Y

S610

Y

Y

Y

Y

Y

Y

S611

Y

Y

Y

Y

Y

Y

S612

Y

Y

Y

Y

Y

Y

S613

Y

Y

Y

Y

Y

Y

S614

Y

Y

Y

Y

Y

Y
