solar electric generator case: 312*395*124MM;
Off grid solar home kit case: 7KG;
Neutal packing or as per your request;
S608 Solar home power generator with fast charger
1. Application of S608 solar home power generator: 1) Provide power for household appliances, like DVD,TV set,fan,light, etc.
(Total power should be less than 1200W) 2) Charge the electronic products, like mobile phone/MP3/MP4/MP5/GPS/PDA, etc.

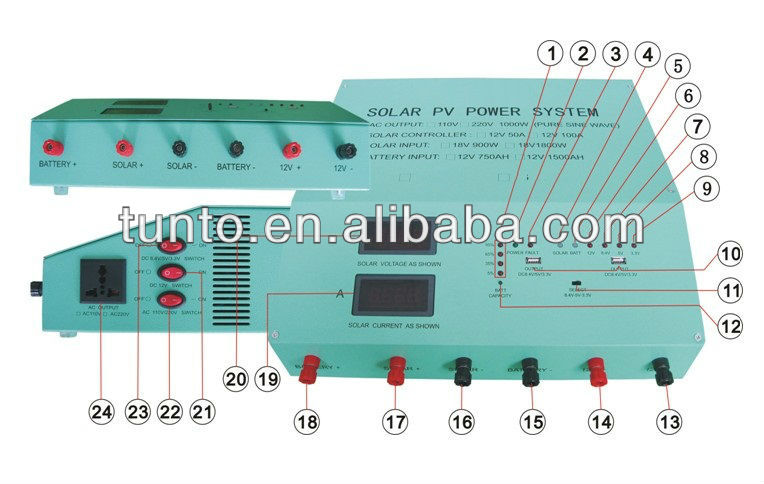

2. Product Diagram of S608 solar home power generator: 1, Battery capacity indicator 2, Inverter working indicator 3, Inverter stop working indicator 4, Solar charging indicator(red means charging,green means finishing charging) 5, Battery working indicator(green means full power, red means low power) 6, 12V load indicator(shine means working) 7, 8.4V load indicator(shine means working) 8, 5V load indicator(shine means working) 9, 3.3V load indicator(shine means working) 10, 8.4V/5V/3.3V USB interface (adjustable) 11, DC 8.4V/5V/3.3V select output switch 12, Check button of battery’s power 13, DC 12V output terminal - 14, DC 12V output terminal + 15, Battery input terminal - 16, Solar input terminal - 17, Solar input terminal + 18, Battery input terminal + 19, Solar input current LCD display 20, Solar input voltage LCD display 21, 12V output switch 22, 110V/220V output switch 23, 8.4V/5V/3.3 output switch 24, AC 220V output socket 3. Product Parameters of S608 solar home power generator: 1) Max. Solar Support: 18V1800W 2) Max. Battery Support: 12V1500AH 3) Controller: 12V100A 4)Inverter:1200W 5) Solar input: 18V 6) Output voltage: 3.5V+5V+8.4V+12V+110V/120V/220V/240V 7) Output interface: 6 (2 *USB, 1*DC, 1*AC, 1*solar input, 1*battery input) For USB Output voltage: 3.5V+5V+8.4V For USB Output current: 1.5A For DC Output voltage: 12V For DC Output current: 3A For AC Output voltage: 110V/120V/220V/240V For AC Output Current:5A
1,The electricity energy generated by the solar panel one day:8.3KWH 2,The electricity energy stored by battery:13.8KWH 3,Maximum power support:1200W 4,Battery charging time:9-11 hours 5,Battery backup:11-12 hours (with full load)
System box: 416*402*130MM
6. Weight: System box: 11.29KG
Our other series product
1. S9 series: DC portable solar power generator, basic and economic lighting series, with output of 5V+12V (S901 is 5V+6V)
2. S0 series: DC system ,higher configuration than S9 series, with output of 3.3V&5V&8.4V+12V
3. S2 series: DC system with MP3&FM player, idea series with music function,S201-S202 is with output of 5V+12V,S203-S204 is with output of 3.3V&5V&8.4V+12V.
4. S8 series:
S803-S804 is DC system, with output of 5V+12V+19V, 19V is for laptop charging.
S805-S806 is AC+DC solar home power generator for home use with 300W AC output and FM&MP3 player.
5. S1 series: AC+DC solar home power generator , conventional home used system with battery inside, this series is with 100W to 1200W output
6. S6 series: AC+DC solar home power generator for home use without battery inside (inverter& controller integrating machine)
7. S3 series: New design ,similar to S9 series with much more competitive price, for customers to break into the basic market .
